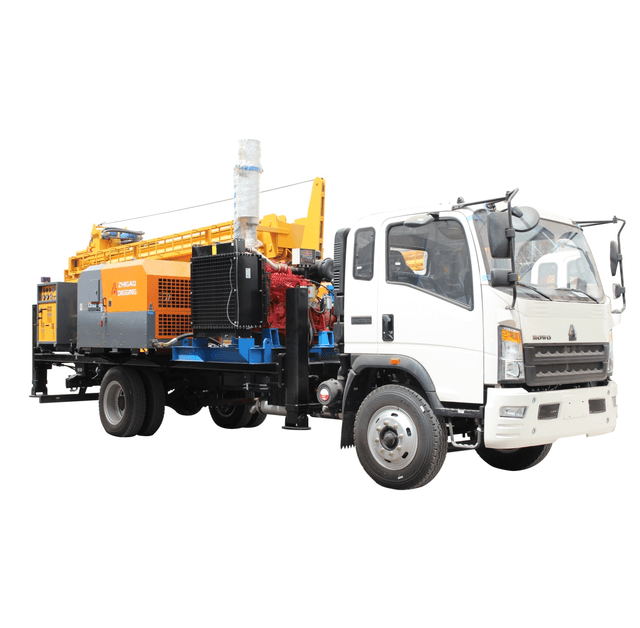

The descriptions of the truck integrated DTH rock water well drill rig machine.
The truck integrated the DTH rock water well drill rig machine, a type of water well drilling rig machine that is fixed on the 4×4 truck. Truck integrated DTH rock water well drill rig machine can drill 350m in depth and it is a truck drill rig machine with two functions, one is the DTH drill function and the other is the mud pump drilling method. This truck integrated DTH rock water well drilling rig machine is equipped with a 92kw Yuchai diesel engine or it can connect to the truck diesel engine directly. The water well borehole diameter this truck rig machine can do is 140mm to 325mm.
The specifications of the truck integrated DTH rock water well drill rig machine.
| The hole diameter（mm） | 140-325 |
| Drilling depth（m） | 350 |
| Diesel engine power（KW） | Yuchai 92Kw or truck engine direct connection |
| Drill pipe diameter（mm） | 89/102/114 |
| Hoisting force of winch（T） | 1.5T |
| Penetration rate（m/h） | 15-35 |
| drilling length（m） | 6.6 |
| Rig lifting force（T） | 22 |
| Swing torque（N.m） | 6200-8500N.m |
| Swing speed（rpm） | 66-135 |
| Using air pressure(MAP) | 1.7-3.4 |
| Air consumption(m³/min) | 17-36 |
| Discharge pressure（Bar） | 25 |
| Air displacement（m/min） | 31 |
| Foam pump | 14.5m3/min |
| Mud pump | BW250/450 |
| Truck | Dongfeng /HOWO |
| Multifunctional generator | Can generate electricity and can be welded (convenient for casing) |
The features of the truck integrated DTH rock water well drill rig machine.
- The integrated DTH rock water well drill rig machine can drill with a screw air compressor or drill with mud pump, it is a hydraulic motor powered water well drilling rig, and it can produce big drilling torque when drilling a water well borehole.
- The truck integrated DTH rock water well drill rig machine is a combination of a water well drilling rig, a screw air compressor, and a mud pump that is built together on a truck.
- The drilling depth of this rock water well drill rig machine is 350m.
