Brief description of a portable piston air compressor.
A portable piston air compressor is a kind of a type of air compressor that is for home use or for powering a piece of small pneumatic equipment. An electric motor or diesel engine starts to drive the portable piston air compressor through the flexible coupling that creates the reciprocating motion of the piston. The piston in the cylinder moves upwards and downwards. And the pressure difference of the intake valve automatically opens, and the air is sucked into the cylinder.
The features of a portable piston air compressor.
The exhausting valve is gradually opened to discharge the compressed air or cylinders that complete of compression of air. The control system of the portable piston air compressor includes unloading valves, the load (pressure) regulator such as adjusting; lubricating oil, the cooling water, and the exhaust gas pressure and temperature, sound and light alarm, an automatic shutdown protection device; auto exhaust water devices.
The specifications of portable piston air compressors.
| Model | Power(kW) | FAD m3/min) | Working pressure(Mpa) | Dimension |
| W-1.8/5-D | 11 | 1.8 | 0.5 | 1700×710×1000 |
| W-1.8/5 | S1100 | 1.8 | 0.5 | 1700×710×1000 |
| W-2/5-D | 11 | 2 | 0.5 | 1700×810×1050 |
| W-2/5 | S1100 | 2 | 0.5 | 1700×810×1050 |
| W-2.6/5-D | 15 | 2.6 | 0.5 | 1780×870×1235 |
| W-2.6/5 | S1110 | 2.6 | 0.5 | 1780×870×1235 |
| W-2.8/5-D | 15 | 2.8 | 0.5 | 1780×870×1235 |
| W-2.8/5 | S1110 | 2.8 | 0.5 | 1780×870×1235 |
| W-3/5-D | 18.5 | 3 | 0.5 | 1800×900×1300 |
| W-3/5 | S1115 | 3 | 0.5 | 1800×900×1300 |
| 2V-3.5/5-D | 18.5 | 3.5 | 0.5 | 1800×950×1300 |
| 2V-3.5/5 | S1125 | 3.5 | 0.5 | 1800×950×1300 |

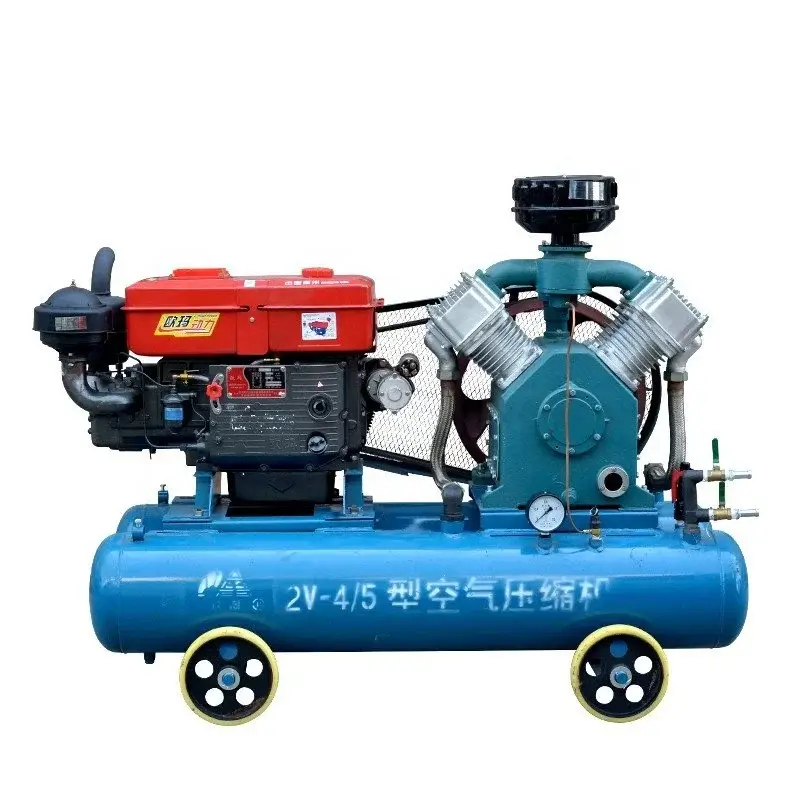

| 2V-4/5-D | 18.5 | 4 | 0.5 | 1800×950×1300 |
| 2V-4/5 | S1125 | 4 | 0.5 | 1800×950×1300 |
| W-1.8/7-D | 11 | 1.8 | 0.7 | 1100×820×1100 |
| W-1.8/7 | S1100 | 1.8 | 0.7 | 1100×820×1100 |
| W-2.6/7-D | 15 | 2.6 | 0.7 | 1800×870×1235 |
| W-2.6/7 | S1115 | 2.6 | 0.7 | 1800×870×1235 |
| W-3.2/7-D | 18.5 | 3.2 | 0.7 | 1920×960×1350 |
| W-3.2/7 | S1125 | 3.2 | 0.7 | 1920×960×1350 |
| VF-7/7 | 40 | 7 | 0.7 | 2100×1100×1110 |
| CVF7/7 | YC4108 | 7 | 0.7 | 2760×1200×1460 |
| CVF7/7 | QC4110 | 7 | 0.7 | 2760×1200×1460 |
| VFY-7/7 | 40 | 7 | 0.7 | 2830×1500×1890 |
| CVFY-7/7 | YC4108 | 7 | 0.7 | 2830×1300×1890 |
| CVFY-7/7 | QC4110 | 7 | 0.7 | 2830×1300×1890 |
