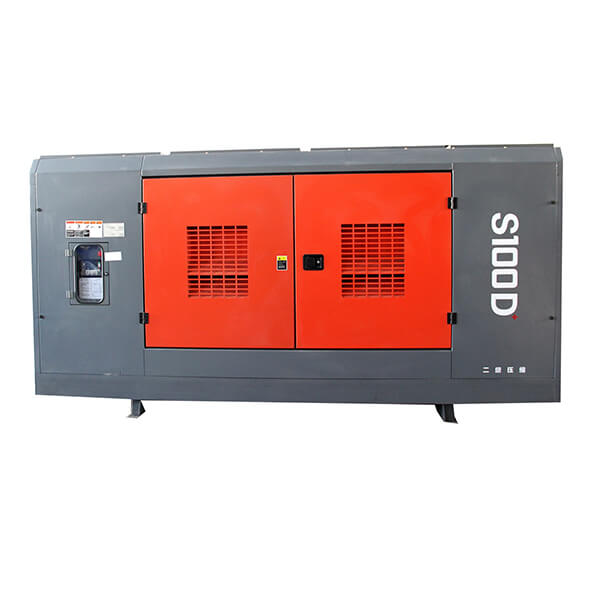

The descriptions of the high pressure deep water well screw air compressor.
The high pressure deep water well screw air compressor is a typical diesel engine screw air compressor, this high pressure water well screw air compressor can produce high pressure compressed air, it is the best screw water well screw air compressor for drilling a water well borehole. It is a two stage compression water well screw air compressor, the free air delivery can be 31 m3/min and the air pressure can be 25 bar. High pressure deep water well screw air compressor is one of the most popular water well screw air compressors.
The specifications of the high pressure deep water well screw air compressor.
- Model: S100D
- Air displacement: 31 m³/min
- Rated discharge pressure: 25 Bar
- Maintain oil change rate: 120 L
- Compressed stage: Two stage compression
- Diesel Engine: CA6DM2-42GAG31 （Xichai）
- Engine power: 309 kw
- Fuel tank capacity: 420 L
- Dimensions: 3960*2000*2000 mm
- Total weight: 4600 kg
- Air discharging pipe: G1-1/2 G2-1/2 inch
The features of the high pressure deep water well screw air compressor.
- High pressure deep water well screw air compressor is a two stage screw air compressor, and it is powered by a diesel engine, it can produce a huge capacity of continuous compressed air.
- The intelligent system tells the whole running status of the diesel screw air compressor, such as heat and pressure.
- It is designed to work in harsh conditions.
The applications of the high pressure deep water well screw air compressor.
This high pressure water well screw air compressor is designed to work with a water well drilling rig, but it can be used for other big pneumatic equipment that needs a huge quantity of continuous compressed air.
