The descriptions of the DTH hammer mud pump rotary water well drilling rig.
The DTH hammer mud pump rotary water well drilling rig machine refers to a water well drilling rig with a mud pump drilling function and screw air compressor drilling function, it is very popular in the market. This DTH hammer mud pump rotary water well drilling rig is a deep water well borehole drilling rig machine, the max. drilling depth is 380m, and the borehole diameter is 140mm to 325mm. It is a hydraulic rotary head drilling rig and the drilling torque is high. The recommended drilling pipe for this water well drilling rig is Φ89mm and Φ102mm.

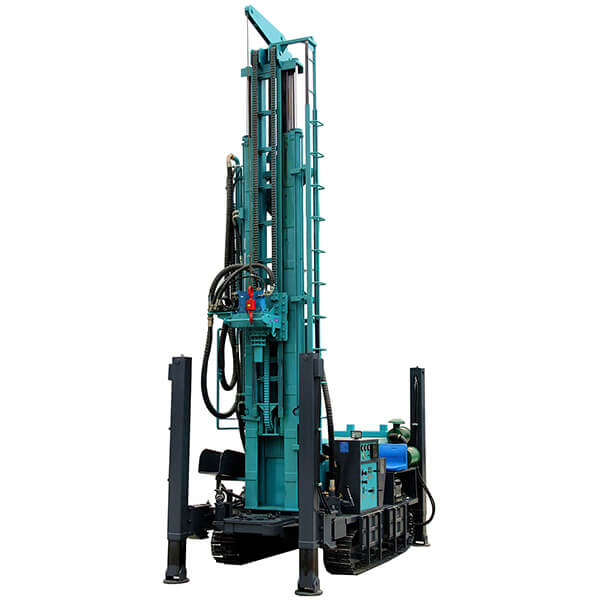

![DTH hammer mud pump rotary water well drilling rig DTH hammer mud pump rotary water well drilling rig](https://www.machinepress.cn/wp-content/uploads/2022/12/Crawler-Water-Well-Drilling-Rig.jpg)
The specifications of the DTH hammer mud pump rotary water well drilling rig.
The weight(T) | 9.2 | Drill pipe diameter(mm) | Φ89 Φ102 |
The hole diameter(mm) | 140-325 | Drill pipe length(m) | 1.5m 2.0m 3.0m 6.0m |
Drilling depth(m) | 380 | Rig lifting force(T) | 24 |
drilling length(m) | 6.6 | Rapid rise speed(m/min) | 20 |
Walking speed(km/h) | 2.5 | Fast feeding speed(m/min) | 40 |
Climbing angles(Max.) | 30 | Width of loading(m) | 2.8 |
Diesel engine power(kw) | 96 | Hoisting force of winch(T) | 2 |
Using air pressure(MPA) | 1.7-3.4 | Swing torque(N.m) | 6500-9000 |
Air consumption(m³/min) | 17-36 | Dimension(mm) | 5950×2100×2550 |
Swing speed(rpm) | 66-135 | DTH hammer | Medium and high wind pressure series |
Penetration rate(m/h) | 15-35 | High leg stroke(m) | 1.6 |
The features of the DTH hammer mud pump rotary water well drilling rig.
- This DTH hammer mud pump rotary water well drilling rig can be used for drilling a water well borehole, or drilling an irrigation well borehole, and able to drill through different earth formations, such as rock, and soil.
- The friendly designed control panel of the DTH water well drilling rig is easy for a water well borehole driller to learn and operated.
- The strong chassis of the DTH hammer mud pump rotary water well drilling rig makes it walks steadily on the rough road.
- This rotary water well drilling rig can use a mud pump to drill or to use a screw air compressor to drill.
