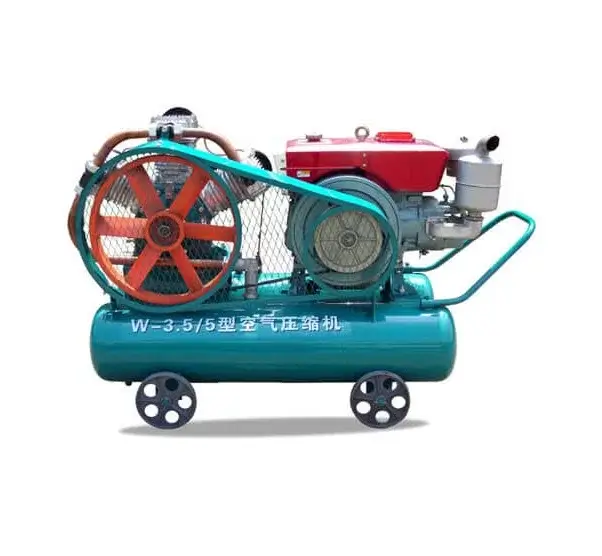

The description of a diesel piston air compressor.
A diesel piston air compressor is a kind of air compressor equipment and it is common for home use and a small workshop. There are two types of piston air compressors from its driving system, one is a diesel engine driven piston air compressor, and the other is an electrical motor driven piston air compressor. If you need an air compressor for home use, the electrical piston air compressor is better. A diesel engine piston air compressor is for an open pit mine or a place where there is no electricity.
The diesel piston air compressor is designed under the concept of low speed, and heavy load, and is good for continuous operation, with low exhaust temperature, low vibration, low noise, and low fuel consumption. Low failure rate, high reliability, reasonable structure, simple system, reliable control, and stable performance.
The features of the diesel piston air compressor.
- High pressure, high efficiency, reliable.
- Less oil consumption, long lifespan.
- Stable and low operating cost.
The details of the diesel piston air compressor.
| Model | W-3.55 | W3108 | W3118 | W3128 |
| Dia. x Cylinder (mm) | 125×3 | 108×3 | 118×3 | 128×3 |
| Travel limitation (mm) | 100 | 80 | 100 | 110 |
| Rated & Max. Air Pressure (Mpa) | 0.5 | 0.5/0.7 | 0.5/0.7 | 0.5/0.7 |
| Rated rotation speed (r/min) | 1070 | 1150 | 1080 | 990 |
| Air Discharging (m3/min) | 3.55 | 2 | 3 | 3.5 |
| Air Storage Tank (L) | 200 | 130 | 200 | 200 |
| Cylinder lid | Alloy | Four Tunnel | Four Tunnel | Four Tunnel |
| Lubricating Type | Splash | Sweden imported, thick blade | Sweden imported, thick blade | Sweden imported, thick blade |
| Cooling type | Cooling Air | Alloy | Alloy | Alloy |
| Compatible Motor | Y160L1-2, 18.5kw | Splash | Splash | Splash |
| Motor transmission Type | Motor & belt | Cooling Air | Cooling Air | Cooling Air |
| Compatible Deiseal Engine | ZS1120 18kw, L28 20kw Single cylinder, 2200r/min | Y160M1-2, 11kw. Y160M2-2, 15kw | Y160M2-2, 15kw. Y160L1-2, 18.5kw | Y180M-2, 22kw. Y160L1-2, 18.5kw |
| transmission | Clutch & belt | Motor & belt | Motor & belt | Motor & belt |
