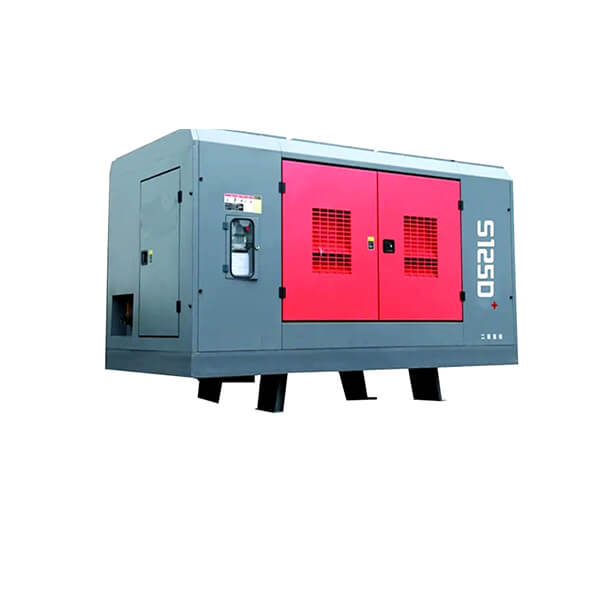

The descriptions of the deep water well drilling diesel screw air compressor.
The deep water well drilling diesel screw air compressor is a huge diesel screw air compressor and is a two stage screw air compressor. This deep water well drilling diesel screw air compressor can produce a high capacity of compressed air, it is used for drilling a deep water well borehole. The free air delivery of this diesel screw air compressor is 35 m3/min and the compressed air pressure is 30 bar. The huge Cummins diesel engine makes this water well screw air compressor work more efficiently. The deep water well drilling diesel screw air compressor is one of the biggest water well screw air compressors in the market.
The specifications of the deep water well drilling diesel screw air compressor.
- Model: S125D
- Air displacement: 35 m³/min
- Rated discharge pressure: 30 Bar
- Maintain oil change rate: 120 L
- Compressed stage: Two stage compression
- Diesel Engine: QSZ13-C550-30（Cummins）
- Engine power: 410 kw
- Fuel tank capacity: 600 L
- Dimensions: 4220*2000*2300 mm
- Total weight: 5820 kg
- Air discharging pipe: G1-1/2 G2-1/2 inch
The features of the deep water well drilling diesel screw air compressor.
- The deep water well drilling diesel screw air compressor can drill a deep water well borehole into the ground and the air displacement is 35m3/min. The high pressure the screw air compressor produces is big and continuous.
- The intelligent control system tells the whole status of the diesel screw air compressor, such as the pressure and the heat.
- The advanced design of this diesel screw air compressor makes it work well in harsh conditions.
The applications of the deep water well drilling diesel screw air compressor.
The deep water well drilling diesel screw air compressor is designed to drill a water well and it can also be used for other pneumatic equipment. This screw air compressor is used for the building of roads, railways, and other drilling projects.
